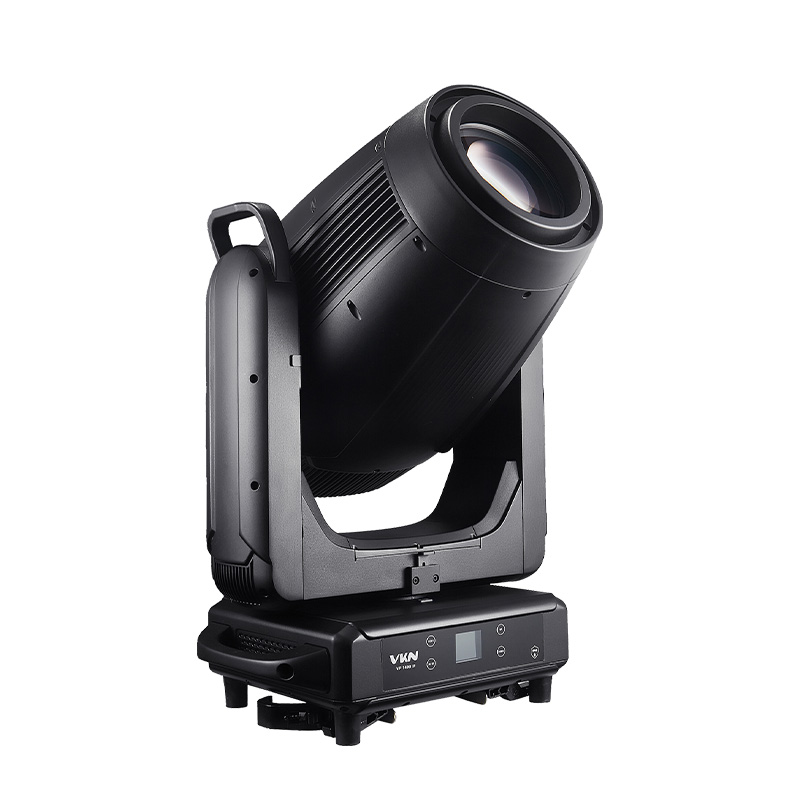

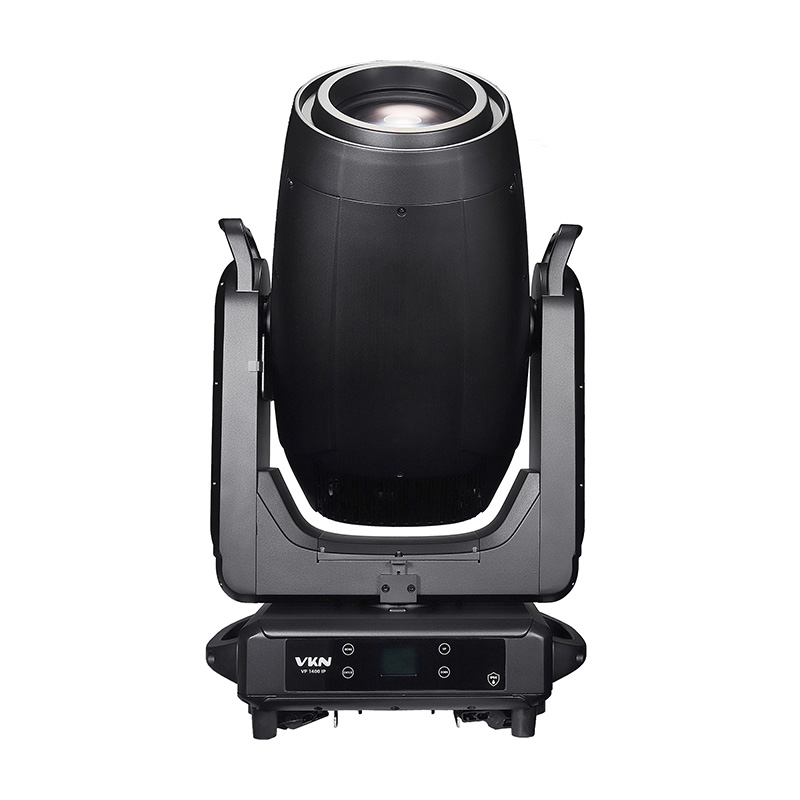

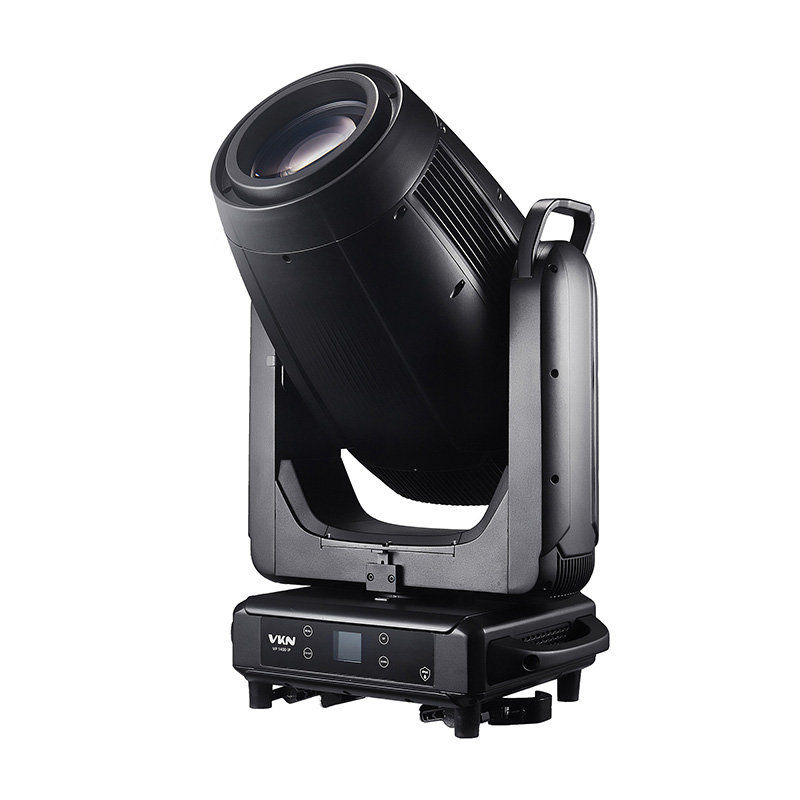

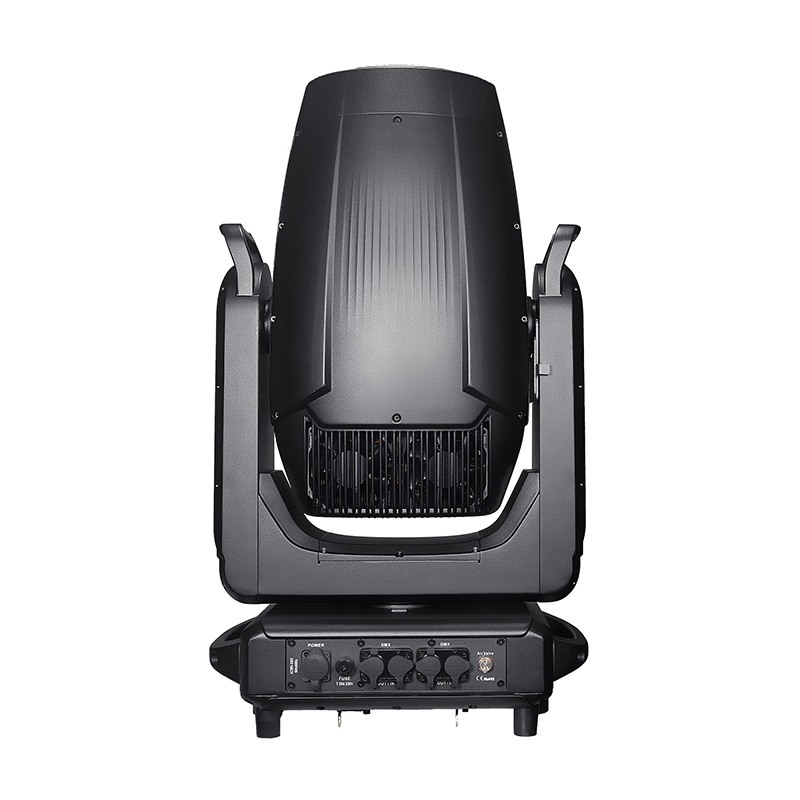

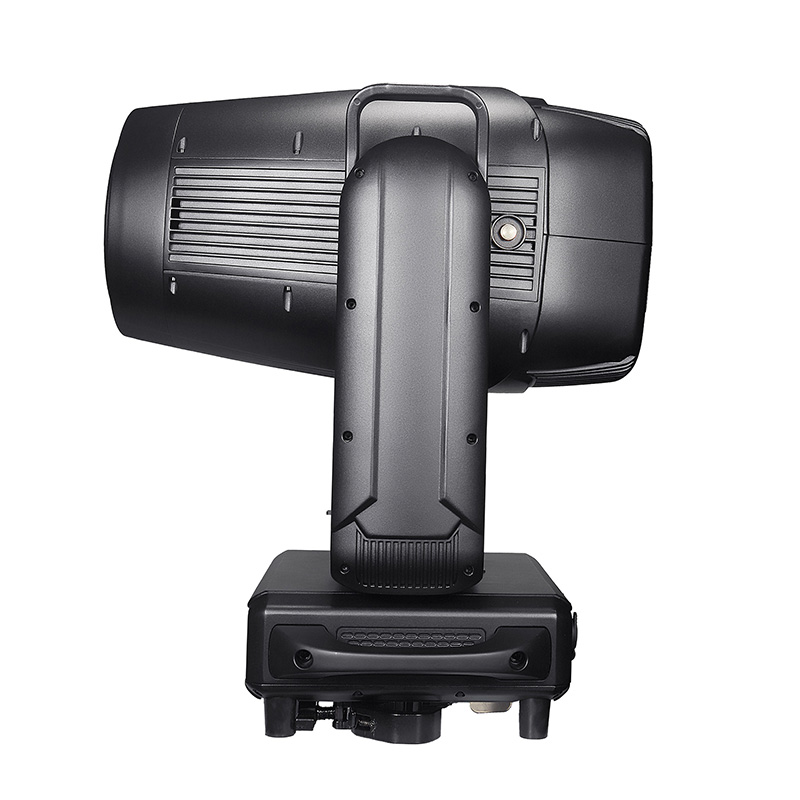

VP1400IP66 1400W LED Waterproof 4in1 Moving Head Profile Light

Name: VP1400IP66 1400W LED Waterproof 4in1 Moving Head Profile Light
Availability: InStock

1400W IP66 waterproof moving head light with Beam, Spot, Wash, Framing, CMY/CTO mixing, dual gobos and prisms for outdoor stages, festivals and touring.

Mô hình thương hiệu :
VP1400IP66
Điện áp đầu vào :
AC100V-240V, 50/60Hz
Nguồn sáng :
1200W LED module
CRI :
Standard mode Ra >70, high display mode >90 (switchable)
Bánh xe màu :
6+1/CMY/CTO

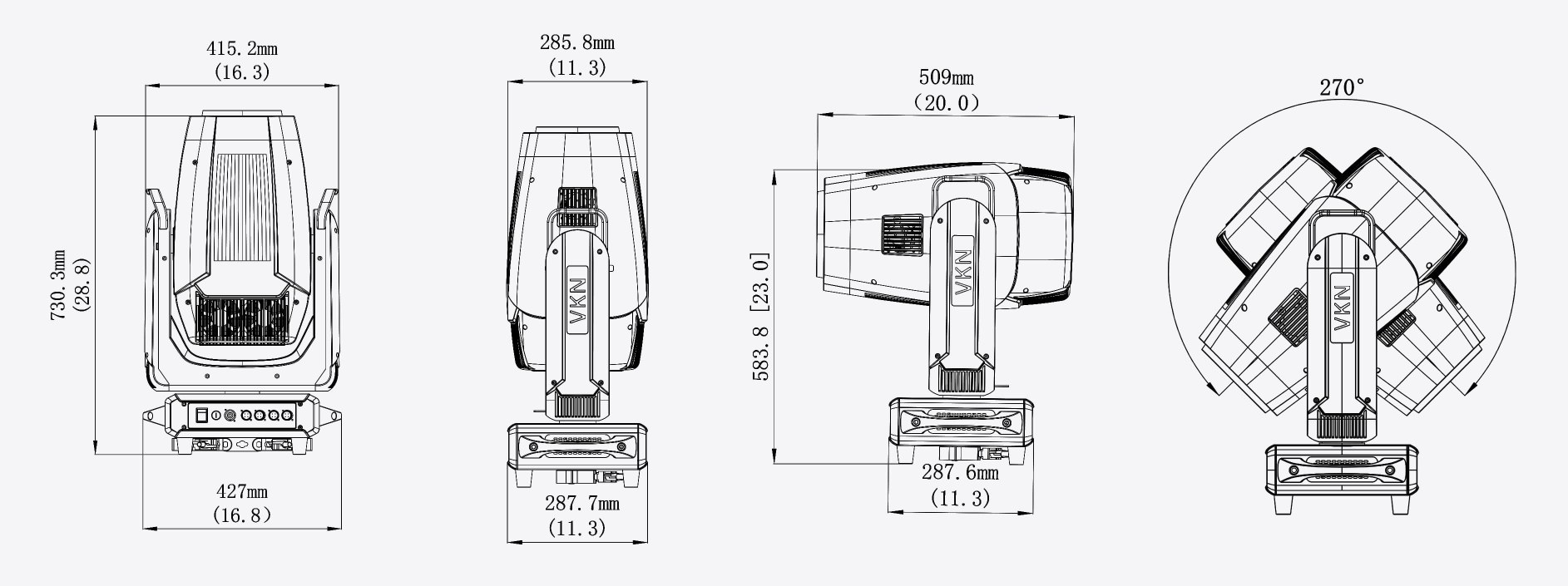

Kích thước sản phẩm :
50.9 × 28.8 × 74 cm
Trọng lượng tịnh :
35.4 kg
Mức độ bảo vệ :
IP66
Chế độ kênh :
39/41CH

LIÊN HỆ NGAY

Function Description

After 12 months of dedicated R&D and rigorous testing, NOWLIT VKN VP1400IP66 is a flagship 1400W IP66 waterproof BSWF moving head light designed for large outdoor stages, festivals, and touring productions. Combining powerful output with all-weather protection, it delivers stable and reliable performance in demanding outdoor environments.

Integrating Beam, Spot, Wash, and Framing functions, VP1400IP66 features four individually controlled framing blades, dual gobo wheels, dual prisms, a 120° rotating module, dual linear frost, and a plug-in CMY/CTO color mixing system. It enables precise beam shaping, dynamic visual effects, and smooth atmosphere rendering for professional stage lighting applications.

Technical parameters

Light Source System

Light source specification: 1400W LED module
Light source color temperature: 6500K
Light source life: >20,000 hours
CRI: standard mode Ra >70, high display mode >90 (switchable)

Optical System

Zoom range: electron linear zoom 5.5-50 degrees
Lens diameter：148mm

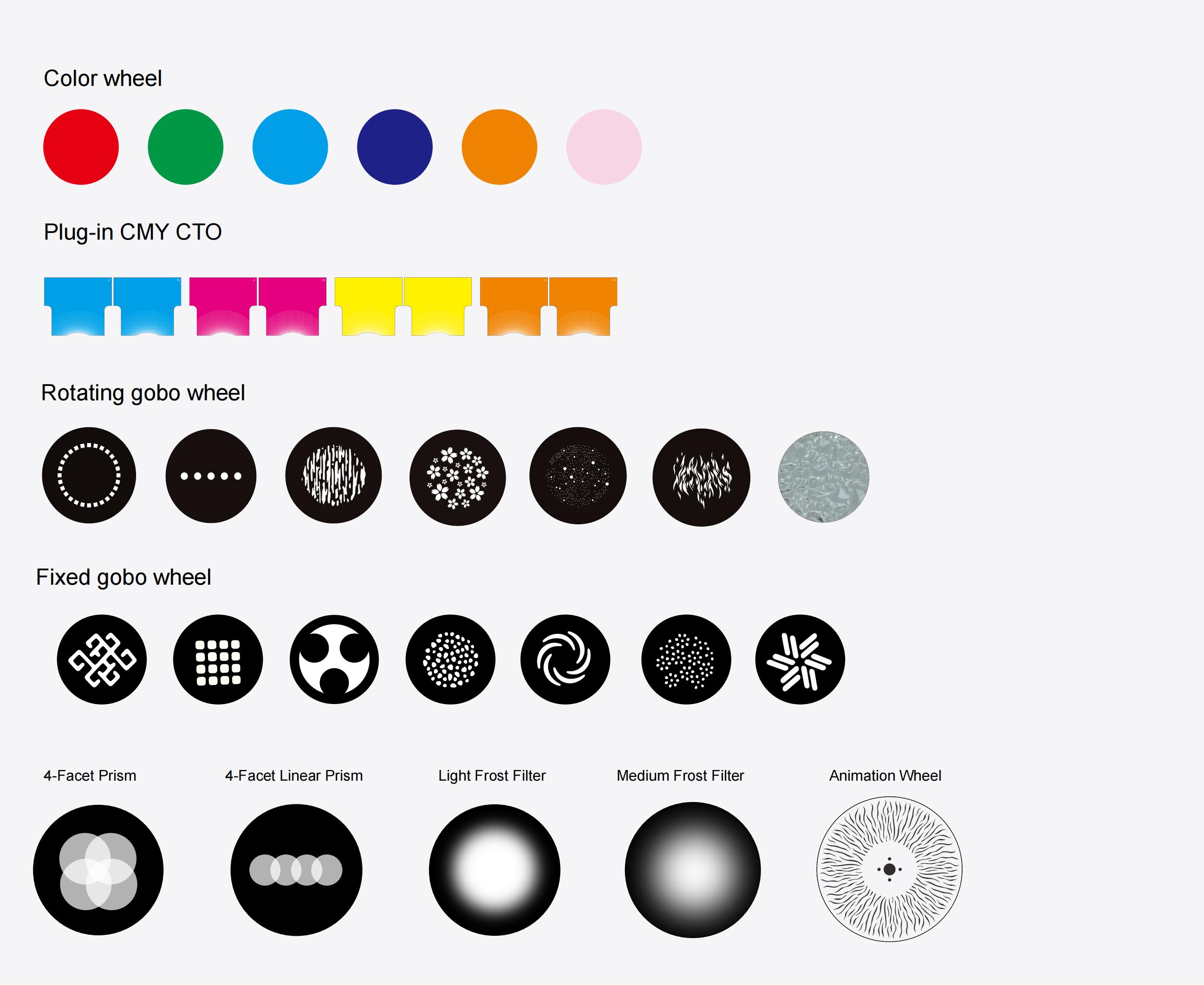

Color System

Plug-in CMY continuous color mixing
Plug-in linear CTO color temperature correction (7200–2600K)
1 independent 6-color wheel with stepped and linear color change modes, including adjustable rainbow effect

Gobo system

Rotating Gobo Wheel: 7 interchangeable glass gobos, each can rotate forwards and backwards independently
Fixed Gobo Wheel: 7 metal gobos + open, with variable-speed jitter effect

Cutting System

4 independent cutting blades, individually controllable to create different product sizes and geometric shapes, rotatable 120°

Effect

Independent effect disc
Prism: 4-facet prism and 4-facet linear prism, independently bi-directional rotation
Dimming: 0-100% linear adjustment
Strobe: multiple speed electronic strobe effects
Frost: 2 independent frost plates, 1 light 0–100% frost effect, 1 medium 0–100% linear frost effect, producing natural soft beam
Electric aperture: 5-100% rapid linear adjustment

Pan &Tilt

Pan/Tilt movement:540°/270°
Automatically return to its original position and perform 16-bit precision fine-tuning
A magnetic encoder positioning system is adopted

Electrical & Interface

Input voltage: AC100V-240V, 50/60Hz
Rated Power: 1450W
Signal interface: 3-core+5-core XLR signal input/output

Control & Programming

Channel mode: 39/41CH
Control Protocols: DMX512/RDM, optional NFC, Art-Net
Display mode: 1.8 LCD touch screen, Chinese-English bilingual operating system, can reverse 180° display
Energy saving sleep: automatically enters the sleep state when the signal is disconnected, which is safe and energy saving
Software upgrade: software can be upgraded via DMX signal cable
Heat dissipation system: high-efficiency heat dissipation system, intelligent speed-regulating fan, built-in temperature sensor, and automatic adjustment of the heat dissipation system
