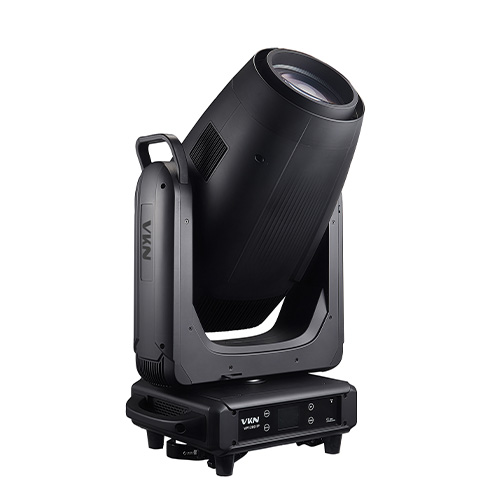

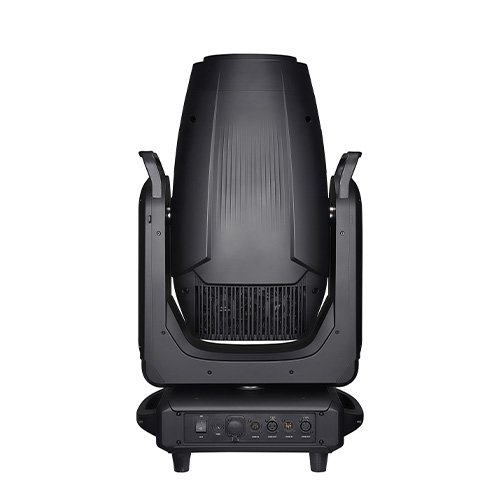

VP1200IP66 1000W LED BSWF Profile Moving Head

Name: VP1200IP66 1000W LED BSWF Profile Moving Head
Availability: InStock

VKN VP1200IP66 1000W LED profile light – IP66 waterproof, high-brightness, lightweight, rugged. Features 4 adjustable cutting blades, 148mm lens, DMX/NFC/Art-Net control for outdoor stages, concerts, and theater.

Mô hình thương hiệu :
VP1200IP66
Điện áp đầu vào :
AC100V-240V, 50/60Hz
Nguồn sáng :
1000W LED module
CRI :
Standard mode Ra >70, high display mode >90 (switchable)
Bánh xe màu :
6+1/CMY/CTO
Kích thước sản phẩm :
50.9 × 28.8 × 74 cm
Trọng lượng tịnh :
33.7 kg

LIÊN HỆ NGAY

Function Description

The VKN VP1200IP66 1000W All-Weather Protective LED Profile Light is designed for outdoor stages, music festivals, concerts, theater productions, and extreme environments. Combining high-brightness output, lightweight design, and rugged durability, it features an IP66-rated waterproof and dustproof construction that resists wind, rain, dust, and corrosion. Built to withstand large-scale tours, outdoor events, and demanding installation conditions, it ensures long-term stable performance, making it a reliable choice for stage lighting and outdoor productions.

The optical system includes a 148mm large-diameter lens and a precision shaping module with 4 independently controllable cutting blades, paired with a 120° rotatable module for sharp or soft geometric beam effects. Dual linear frost filters (light/medium, 0–100% adjustable) allow smooth transitions between crisp cuts and soft washes. Compatible with DMX512/RDM, supporting NFC smart adjustment and Art-Net, and featuring a plug-in CMY/CTO color mixing system, it simplifies on-site setup and maintenance, delivering efficient lighting design and creative effects for music festival stages, concert venues, and theater productions.

Technical parameters

Light Source System

Light source specification: 1000W LED module
Light source color temperature: 6500K
Light source life: >20,000 hours
CRI: standard mode Ra >70, high display mode >90 (switchable)

Optical System

Zoom range: electron linear zoom 5.5-50 degrees
Lens diameter：148mm
Lux：115,000 Lux @5m

Color System

Plug-in CMY continuous color mixing
Plug-in linear CTO color temperature correction (7200–2600K)
1 independent 6-color wheel with stepped and linear color change modes, including adjustable rainbow effect

Gobo system

Rotating Gobo Wheel: 7 interchangeable glass gobos, each can rotate forwards and backwards independently
Fixed Gobo Wheel: 7 metal gobos + open, with variable-speed jitter effect

Cutting System

4 independent cutting blades, individually controllable to create different product sizes and geometric shapes, rotatable 120°

Effect

Independent effect disc
Prism: 4-facet prism and 4-facet linear prism, independently bi-directional rotation
Dimming: 0-100% linear adjustment
Strobe: multiple speed electronic strobe effects
Frost: 2 independent frost plates, 1 light 0–100% frost effect, 1 medium 0–100% linear frost effect, producing natural soft beam
Electric aperture: 5-100% rapid linear adjustment

Pan &Tilt

Pan/Tilt movement:540°/270°
Automatically return to its original position and perform 16-bit precision fine-tuning
A magnetic encoder positioning system is adopted

Electrical & Interface

Input voltage: AC100V-240V, 50/60Hz
Rated Power: 1200W
Signal interface: 3-core+5-core XLR signal input/output

Control & Programming

Channel mode: 39/41CH
Control Protocols: DMX512/RDM, optional NFC, Art-Net
Display mode: 2.8 LCD touch screen, Chinese-English bilingual operating system, can reverse 180° display
Energy saving sleep: automatically enters the sleep state when the signal is disconnected, which is safe and energy saving
Software upgrade: software can be upgraded via DMX signal cable
Heat dissipation system: high-efficiency heat dissipation system, intelligent speed-regulating fan, built-in temperature sensor, and automatic adjustment of the heat dissipation system
